FL9295 4-channels Vehicle Video Acquisition Injection GMSL HPC FMC Card
Código de artículo VAR-827002771

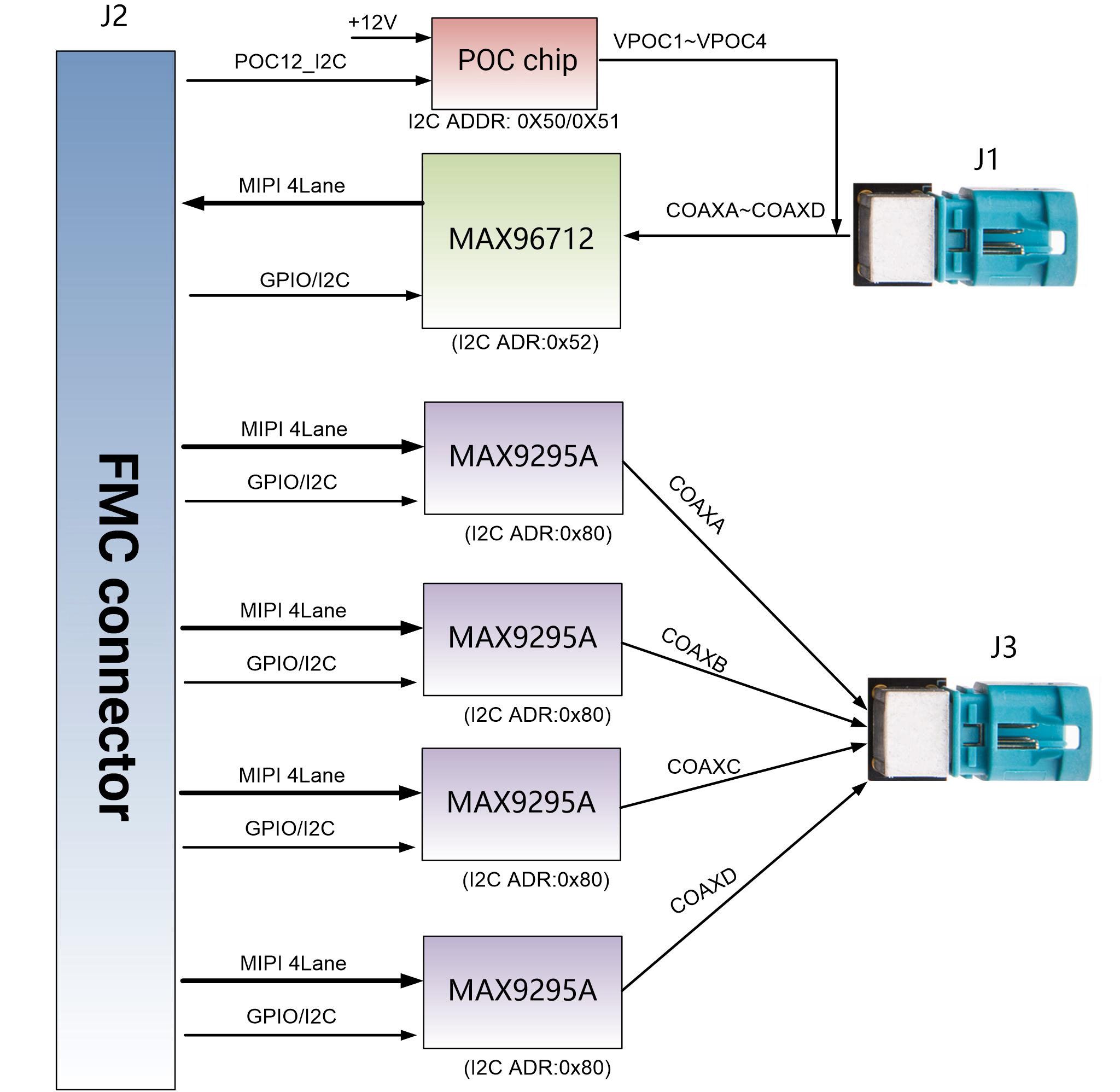

FL9295 is a 4-channel GMSL2 camera acquisition and video simulation injection module. Module adopts 1 piece MAX96712 deserializer and 4 MAX9295A serializers achieve 4 video decoding input and output channels. The video interface adopts a four in one FAKRA vehicle standard coaxial connector. FL9295 has a standard FMC LPC interface that can be connected to the ALINX FPGA carrier board for use.
| Identificación de artículo | 102331 |
| Estado | |
| ID de artículo histórico | |
| Modelo | FL9295 |
| Fabricante | Alinx Electronic Limited |
| País de origen | |
| Contenido | 1 undefined |
| Peso | 1000 g |
| Peso neto | 1000 g |
Key Features
● Supports 4-channel GMSL1/2 camera input and output ◆ Input: Supports 4-channel cameras, up to 8MP 30 frame resolution cameras
◆ Output: Supports 4-channel video output, supports 2MP/4MP 60 frames, or 8MP 30 frames● Cable length support◆ Up to 40 meters (3Gbps) in GMSL1 mode
◆ Up to 20 meters (6Gbps) in GMSL2 mode● Vehicle standard connector ◆ Using Anfeno Z Code FAKRA vehicle standard coaxial connectors
● Input image format ◆ Supports RAW8/10/12/14/16/20, RGB565/666/888, YUV422 8/10bit video image formats. It can be matched through I2C Install a remote camera● FMC LPC connector
● Dimensions: 76.5 x 69 mm form factor
