Alinx Electronic Limited
FL0214 Dual Lens MIPI IMX214 CMOS Camera LPC FMC Card
Código de artículo VAR-827002786

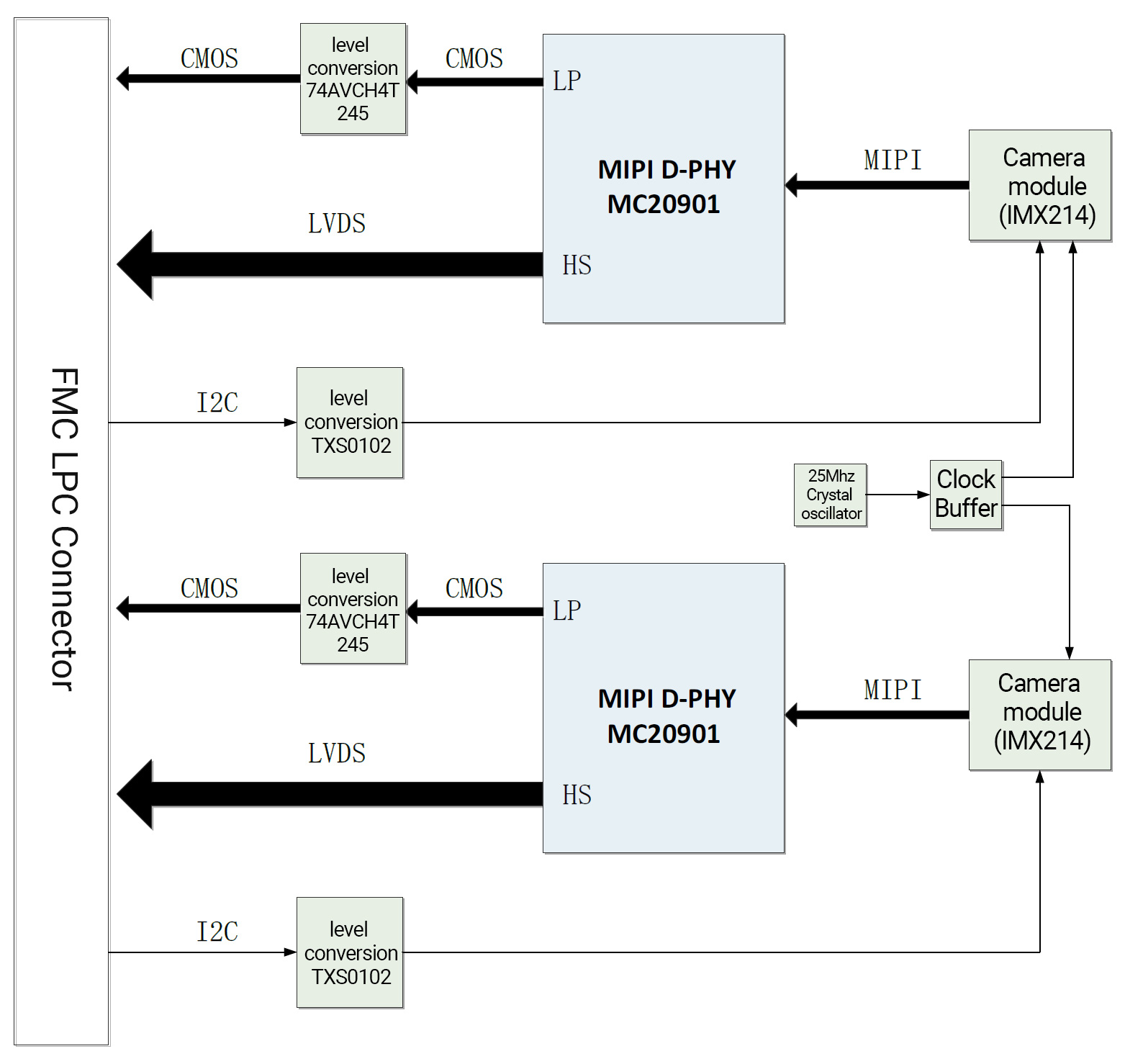

FL0214 is a 2-way 13 megapixel CMOS camera module with MIPI interface. The camera module adopts a CMOS photosensitive chip IMX214. FL0214 has a standard FMC LPC interface that can be connected to the ALINX FPGA carrier board for use.
| Identificación de artículo | 102346 |
| Estado | |
| ID de artículo histórico | |
| Modelo | FL0214 |
| Fabricante | Alinx Electronic Limited |
| País de origen | |
| Contenido | 1 undefined |
| Peso | 1000 g |
| Peso neto | 1000 g |
Key Features
● Photosensitive Chip: SONY IMX214
● Resolution Ratio: 4208 *3120/4K/2K@30fps, 1080P@60fps
● Output Format: RAW10/8, COMP8/6
● Viewing Angle: 80.7°± 3° (Diag)
● Focusing distance: 10CM~infinity
● Camera output: CSI-2 serial data output (MIPI 4 Lane, compatible with D-PHY standard V1.1)
● Focusing method: The motor automatically focuses
● Camera configuration interface: I2C
● MC20901 driver chip: level conversion (MIPI D-PHY ->LVDS)
● FMC LPC connector
● Working Temperature: -20°C-65°C
● Dimensions: 76.5 x 69 mm form factor
