Alinx Electronic Limited
ACU19EG SoM based on AMD Zynq US+ MPSoC ZU19EG
● AMD/Xilinx Zynq™ Ultrascale+™ MPSoC: ◆ ARM® quad-core Cortex™-A53 up to 1.3 GHz ◆ ARM® dual-core Cortex™-R5 up to 533 MHz ◆ Mali-400MP2 GPU ◆ 16nm FinFET+ FPGA fabric● Pluggable module with 8 x Panasonic board-to-board connectors ● 5 GByte (72-bit) DDR4 SDRAM with ECC on PS ● 4 GByte (64-bit) DDR4 SDRAM on PL ● 2 x 64 MB QSPI Flash ● 32 GB eMMC Flash ● 5 x PCIe® Gen3 ×16 (PL), PCIe® Gen2 ×4 (PS) ● Gigabit transceivers ◆ 4 x GTR, up to 6.6 Gbps ◆ 32 x GTH, up to 12.5 Gbps ◆ 16 x GTY, up to 28.21 Gbps● User I/Os ◆ 54 PS MIOs ◆ 336 FPGA I/Os (96 HD + 240 HP)● EEPROM: 4-Kbit I2C Serial EEPROM ● Work temperature range of -40°C to +85°C ● 12V single supply ● Dimensions: 80 x 80 mm form factor
Código de artículo VAR-827002872

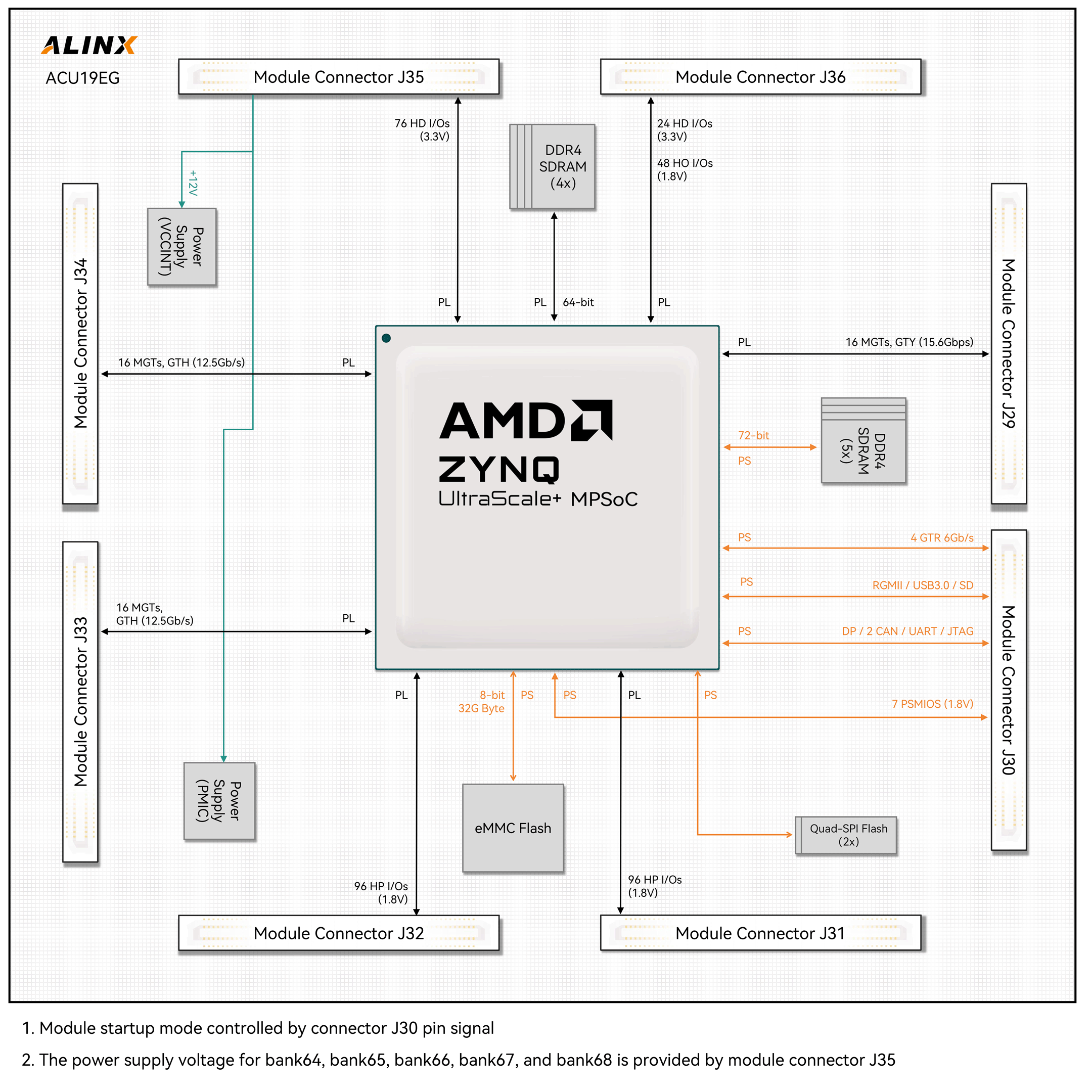

The ACU19EG system-on-chip (SoC) system-on-module (SOM) combines high-end AMD/Xilinx Zynq™ UltraScale+™ MPSoC-series XCZU19EG device with fast DDR4 SDRAM, eMMC Flash, dual parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system. This module is suitable for high-speed applications due to the high number of transceivers.
| Identificación de artículo | 102432 |
| Estado | |
| Modelo | ACU19EG |
| Fabricante | Alinx Electronic Limited |
| País de origen | |
| Contenido | 1 undefined |
| Peso | 1000 g |
| Peso neto | 1000 g |
Applications
● Artificial Intelligence
● Automotive
● AV Broadcasting
● Deep learning
● Digital Signal Processing
● 5G Wireless and Wire Communication
● Data Centers
● Drive / Motion Control
● Industrial Internet of Thing
● Cloud Computing Security
● Machine Vision
● Medical Endoscop
● Video and Image Processing
